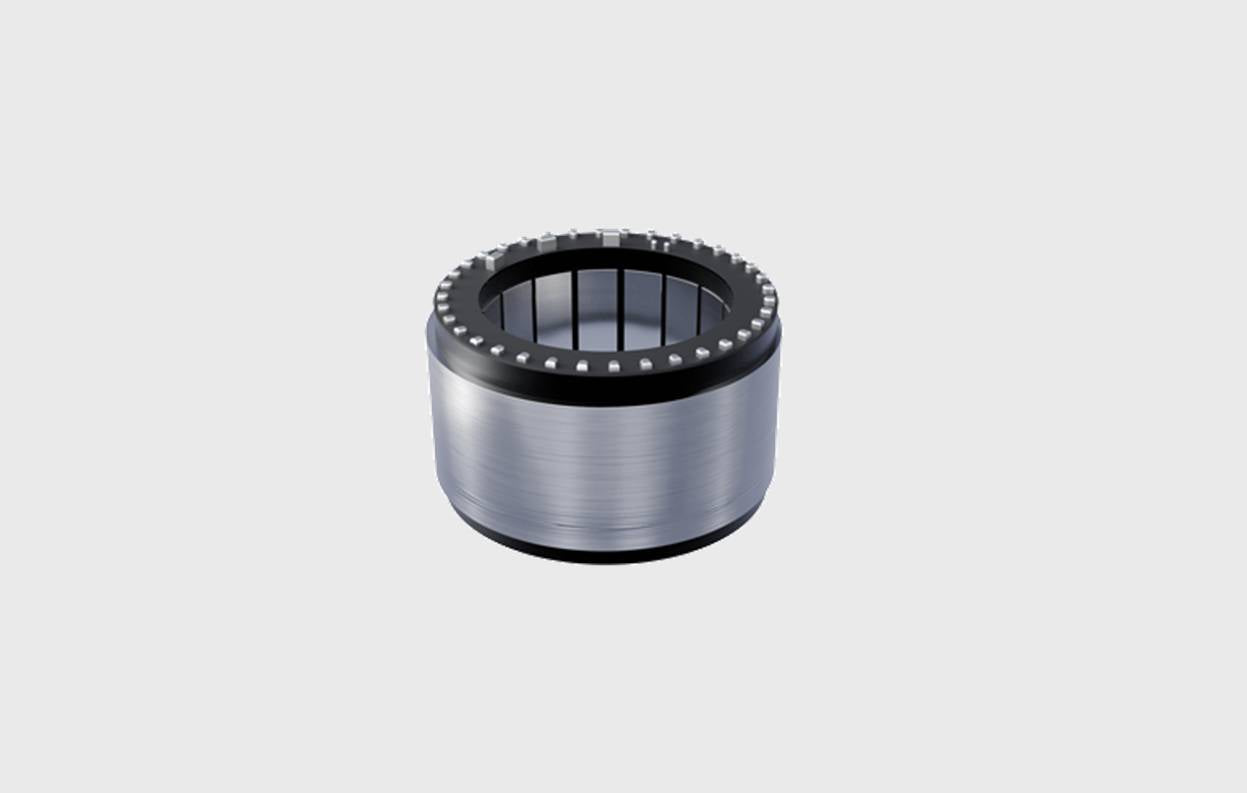

{"id":8555978326195,"title":"Humanoid Robot Component Frameless Motor FM2 Series FM2-06011","handle":"humanoid-robot-component-frameless-motor-fm2-series-fm2-06011","description":"\u003cp\u003eThe \u003cstrong\u003eLeadshine FM2-06011\u003c\/strong\u003e is a premium \u003cstrong\u003eframeless servo motor\u003c\/strong\u003e from the FM2 Series, engineered for collaborative robots, humanoid robots, AGVs, medical equipment, and advanced automation systems. Its compact frameless architecture enables seamless integration into space-constrained designs while delivering exceptional performance and reliability.\u003c\/p\u003e\n\u003cp\u003eBuilt with a new electromagnetic design, the FM2-06011 offers lower temperature rise, higher torque density, and faster dynamic response. Its optimized rotor structure ensures smooth operation, accurate positioning, and consistent performance in high-speed motion control applications.\u003c\/p\u003e\n\u003cp\u003eOperating at \u003cstrong\u003e48V DC\u003c\/strong\u003e, the motor delivers a \u003cstrong\u003erated torque of 0.65Nm\u003c\/strong\u003e and a \u003cstrong\u003epeak torque of 1.95Nm\u003c\/strong\u003e. With a \u003cstrong\u003erated speed of 3800rpm\u003c\/strong\u003e and a \u003cstrong\u003emaximum speed of 5000rpm\u003c\/strong\u003e, it provides excellent efficiency and precise control for robotic joints and industrial automation systems.\u003c\/p\u003e\n\u003cp\u003eThe FM2-06011 combines lightweight construction, compact dimensions, and superior thermal performance, making it an ideal solution for next-generation robotic and precision motion control applications.\u003c\/p\u003e\n\u003ch3\u003eKey Features\u003c\/h3\u003e\n\u003cp\u003e✔ Compact 60mm frameless motor design\u003cbr\u003e✔ High torque density construction\u003cbr\u003e✔ New electromagnetic design for improved efficiency\u003cbr\u003e✔ Rated torque: 0.65Nm\u003cbr\u003e✔ Peak torque: 1.95Nm\u003cbr\u003e✔ Rated speed: 3800rpm\u003cbr\u003e✔ Maximum speed: 5000rpm\u003cbr\u003e✔ Rated voltage: 48V DC\u003cbr\u003e✔ Low rotor inertia for rapid response\u003cbr\u003e✔ Reduced temperature rise\u003cbr\u003e✔ Smooth and precise motion control\u003cbr\u003e✔ Lightweight and compact design\u003cbr\u003e✔ Suitable for robotics and automation systems\u003cbr\u003e✔ Insulation Class F\u003c\/p\u003e\n\u003ch3\u003eTechnical Specifications\u003c\/h3\u003e\n\u003cp\u003e\u003cstrong\u003eModel:\u003c\/strong\u003e FM2-06011\u003cbr\u003e\u003cstrong\u003eProduct Type:\u003c\/strong\u003e Frameless Servo Motor\u003cbr\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e FM2 Series\u003cbr\u003e\u003cstrong\u003eFrame Size:\u003c\/strong\u003e 60mm\u003cbr\u003e\u003cstrong\u003eNumber of Phases:\u003c\/strong\u003e 3\u003cbr\u003e\u003cstrong\u003ePole Pairs:\u003c\/strong\u003e 10\u003cbr\u003e\u003cstrong\u003eRated Voltage:\u003c\/strong\u003e 48V DC\u003cbr\u003e\u003cstrong\u003eRated Current:\u003c\/strong\u003e 6.5A\u003cbr\u003e\u003cstrong\u003ePeak Current:\u003c\/strong\u003e 20.2A\u003cbr\u003e\u003cstrong\u003eRated Speed:\u003c\/strong\u003e 3800rpm\u003cbr\u003e\u003cstrong\u003eMaximum Speed:\u003c\/strong\u003e 5000rpm\u003cbr\u003e\u003cstrong\u003eRated Torque:\u003c\/strong\u003e 0.65Nm\u003cbr\u003e\u003cstrong\u003ePeak Torque:\u003c\/strong\u003e 1.95Nm\u003cbr\u003e\u003cstrong\u003eTorque Constant:\u003c\/strong\u003e 0.108Nm\/A\u003cbr\u003e\u003cstrong\u003eBack EMF Constant:\u003c\/strong\u003e 6.5 × 10⁻³ V\/rpm\u003cbr\u003e\u003cstrong\u003eResistance (Line-Line):\u003c\/strong\u003e 0.26Ω ±10%\u003cbr\u003e\u003cstrong\u003eInductance:\u003c\/strong\u003e 0.30mH ±20%\u003cbr\u003e\u003cstrong\u003eRotor Inertia:\u003c\/strong\u003e 0.17 × 10⁻⁴ kg·m²\u003cbr\u003e\u003cstrong\u003eWeight:\u003c\/strong\u003e 0.175kg\u003cbr\u003e\u003cstrong\u003eInsulation Class:\u003c\/strong\u003e F\u003cbr\u003e\u003cstrong\u003eInsulation Resistance:\u003c\/strong\u003e \u0026gt;100MΩ at DC500V\u003c\/p\u003e","published_at":"2026-07-14T15:09:23+05:30","created_at":"2026-07-14T15:09:21+05:30","vendor":"Leadshine India","type":"Robotic Components","tags":[],"price":10000,"price_min":10000,"price_max":10000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45686752870579,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Humanoid Robot Component Frameless Motor FM2 Series FM2-06011","public_title":null,"options":["Default Title"],"price":10000,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leadshineindia.com\/cdn\/shop\/files\/FM2-06011.jpg?v=1784021848"],"featured_image":"\/\/leadshineindia.com\/cdn\/shop\/files\/FM2-06011.jpg?v=1784021848","options":["Title"],"media":[{"alt":null,"id":32542946132147,"position":1,"preview_image":{"aspect_ratio":1.573,"height":793,"width":1247,"src":"\/\/leadshineindia.com\/cdn\/shop\/files\/FM2-06011.jpg?v=1784021848"},"aspect_ratio":1.573,"height":793,"media_type":"image","src":"\/\/leadshineindia.com\/cdn\/shop\/files\/FM2-06011.jpg?v=1784021848","width":1247}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eThe \u003cstrong\u003eLeadshine FM2-06011\u003c\/strong\u003e is a premium \u003cstrong\u003eframeless servo motor\u003c\/strong\u003e from the FM2 Series, engineered for collaborative robots, humanoid robots, AGVs, medical equipment, and advanced automation systems. Its compact frameless architecture enables seamless integration into space-constrained designs while delivering exceptional performance and reliability.\u003c\/p\u003e\n\u003cp\u003eBuilt with a new electromagnetic design, the FM2-06011 offers lower temperature rise, higher torque density, and faster dynamic response. Its optimized rotor structure ensures smooth operation, accurate positioning, and consistent performance in high-speed motion control applications.\u003c\/p\u003e\n\u003cp\u003eOperating at \u003cstrong\u003e48V DC\u003c\/strong\u003e, the motor delivers a \u003cstrong\u003erated torque of 0.65Nm\u003c\/strong\u003e and a \u003cstrong\u003epeak torque of 1.95Nm\u003c\/strong\u003e. With a \u003cstrong\u003erated speed of 3800rpm\u003c\/strong\u003e and a \u003cstrong\u003emaximum speed of 5000rpm\u003c\/strong\u003e, it provides excellent efficiency and precise control for robotic joints and industrial automation systems.\u003c\/p\u003e\n\u003cp\u003eThe FM2-06011 combines lightweight construction, compact dimensions, and superior thermal performance, making it an ideal solution for next-generation robotic and precision motion control applications.\u003c\/p\u003e\n\u003ch3\u003eKey Features\u003c\/h3\u003e\n\u003cp\u003e✔ Compact 60mm frameless motor design\u003cbr\u003e✔ High torque density construction\u003cbr\u003e✔ New electromagnetic design for improved efficiency\u003cbr\u003e✔ Rated torque: 0.65Nm\u003cbr\u003e✔ Peak torque: 1.95Nm\u003cbr\u003e✔ Rated speed: 3800rpm\u003cbr\u003e✔ Maximum speed: 5000rpm\u003cbr\u003e✔ Rated voltage: 48V DC\u003cbr\u003e✔ Low rotor inertia for rapid response\u003cbr\u003e✔ Reduced temperature rise\u003cbr\u003e✔ Smooth and precise motion control\u003cbr\u003e✔ Lightweight and compact design\u003cbr\u003e✔ Suitable for robotics and automation systems\u003cbr\u003e✔ Insulation Class F\u003c\/p\u003e\n\u003ch3\u003eTechnical Specifications\u003c\/h3\u003e\n\u003cp\u003e\u003cstrong\u003eModel:\u003c\/strong\u003e FM2-06011\u003cbr\u003e\u003cstrong\u003eProduct Type:\u003c\/strong\u003e Frameless Servo Motor\u003cbr\u003e\u003cstrong\u003eSeries:\u003c\/strong\u003e FM2 Series\u003cbr\u003e\u003cstrong\u003eFrame Size:\u003c\/strong\u003e 60mm\u003cbr\u003e\u003cstrong\u003eNumber of Phases:\u003c\/strong\u003e 3\u003cbr\u003e\u003cstrong\u003ePole Pairs:\u003c\/strong\u003e 10\u003cbr\u003e\u003cstrong\u003eRated Voltage:\u003c\/strong\u003e 48V DC\u003cbr\u003e\u003cstrong\u003eRated Current:\u003c\/strong\u003e 6.5A\u003cbr\u003e\u003cstrong\u003ePeak Current:\u003c\/strong\u003e 20.2A\u003cbr\u003e\u003cstrong\u003eRated Speed:\u003c\/strong\u003e 3800rpm\u003cbr\u003e\u003cstrong\u003eMaximum Speed:\u003c\/strong\u003e 5000rpm\u003cbr\u003e\u003cstrong\u003eRated Torque:\u003c\/strong\u003e 0.65Nm\u003cbr\u003e\u003cstrong\u003ePeak Torque:\u003c\/strong\u003e 1.95Nm\u003cbr\u003e\u003cstrong\u003eTorque Constant:\u003c\/strong\u003e 0.108Nm\/A\u003cbr\u003e\u003cstrong\u003eBack EMF Constant:\u003c\/strong\u003e 6.5 × 10⁻³ V\/rpm\u003cbr\u003e\u003cstrong\u003eResistance (Line-Line):\u003c\/strong\u003e 0.26Ω ±10%\u003cbr\u003e\u003cstrong\u003eInductance:\u003c\/strong\u003e 0.30mH ±20%\u003cbr\u003e\u003cstrong\u003eRotor Inertia:\u003c\/strong\u003e 0.17 × 10⁻⁴ kg·m²\u003cbr\u003e\u003cstrong\u003eWeight:\u003c\/strong\u003e 0.175kg\u003cbr\u003e\u003cstrong\u003eInsulation Class:\u003c\/strong\u003e F\u003cbr\u003e\u003cstrong\u003eInsulation Resistance:\u003c\/strong\u003e \u0026gt;100MΩ at DC500V\u003c\/p\u003e"}
